8/26/2025 - 4 Minute Read
When developing a new product, most ideas begin as a 3D CAD model. CAD is incredibly powerful for engineering and manufacturing, capturing precise dimensions, assemblies, and geometric details. But when it comes to filing a patent, CAD data alone is not enough. The U.S. Patent and Trademark Office (USPTO) requires drawings that follow strict formatting rules, and those raw exports rarely meet the mark.
That is where professional drafting comes in. Skilled illustrators help inventors, attorneys, and companies transform CAD models into USPTO-compliant patent drawings that clearly communicate the claimed design. Here is a closer look at why each stage of the process matters:
Every design starts in CAD. These models are precise and detailed, providing engineers with all the data needed to build, test, and refine a product. But the richness of that information, including hidden geometry, parametric details, and construction lines, does not translate directly into the patent process. Examiners are not reviewing 3D data. They need clear 2D drawings that define what is protected and leave no room for ambiguity. In other words, CAD is the foundation, but it is not the finish line.

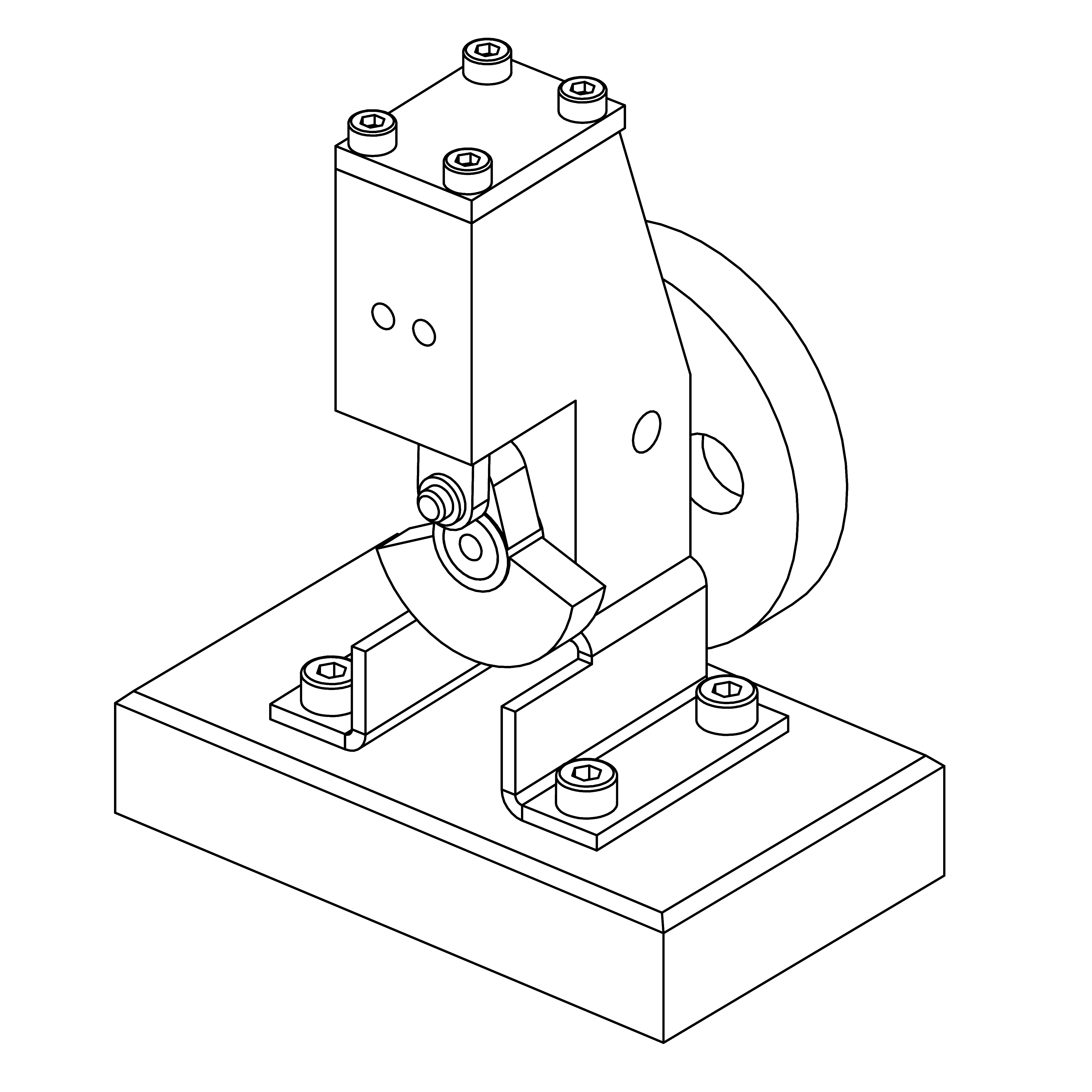

Exported linework from CAD can sometimes work for utility patents when paired with proper formatting, where function is more important than appearance. But in design patents, clarity is everything. Raw vectors often include extra construction geometry, overlapping lines, or hidden edges that clutter the drawing. These artifacts can create dark or messy areas that confuse examiners. Without proper shading, surfaces may appear undefined, leaving the design open to misinterpretation. What looks acceptable in an engineering model can be fatal in a design application.

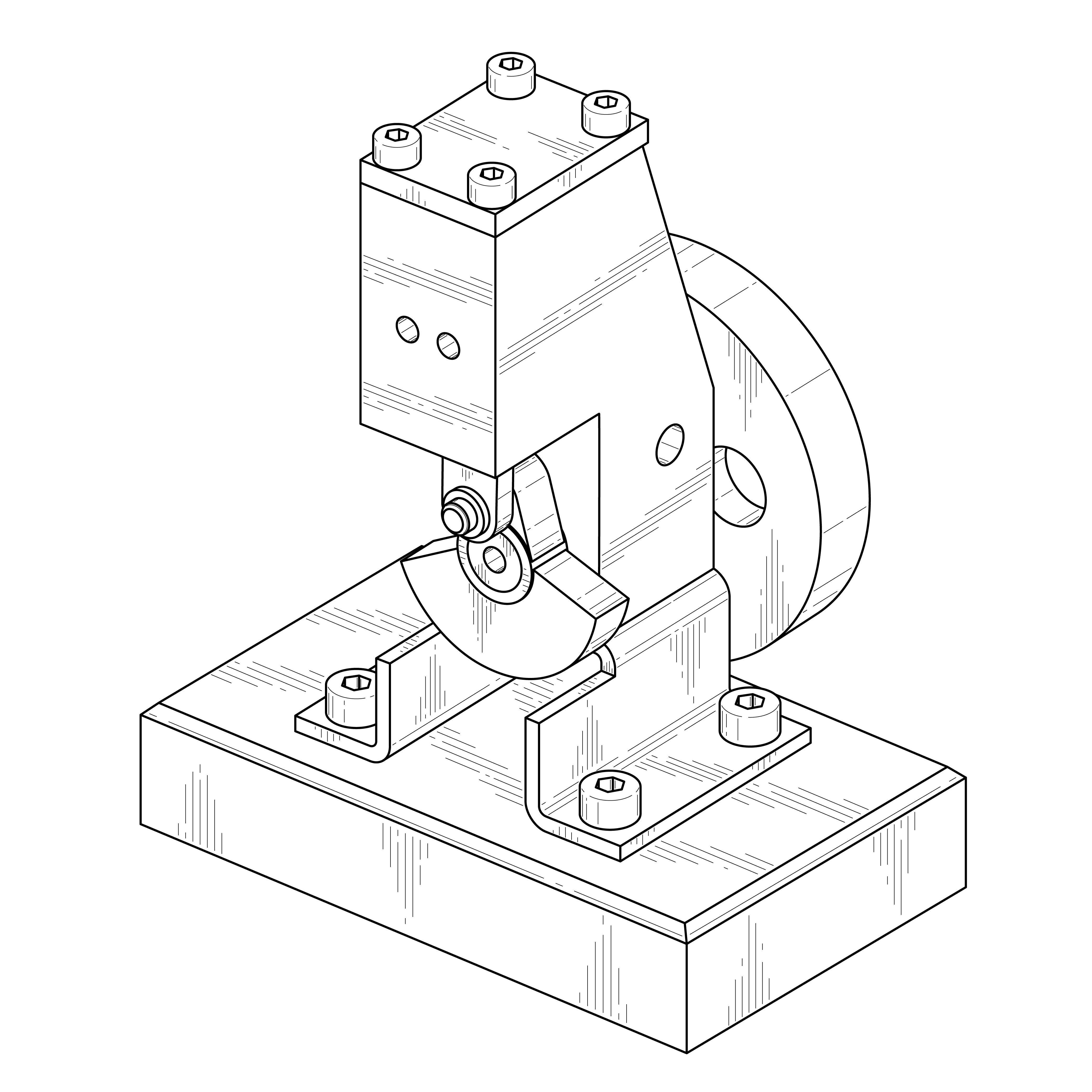

Finished Patent Drawing: From Ambiguity to Clarity
This is where a professional illustrator makes the difference. By applying consistent line weights, proper shading, and careful use of broken lines, drafting turns a dense CAD export into a clear, compliant drawing. Surfaces are defined, proportions are preserved, and unnecessary details are removed, leaving only what is essential to claim. The result is not just a picture. It is a legal document that protects your design, reduces the risk of examiner objections, and strengthens enforceability if your patent is ever challenged.
When drawings meet USPTO standards from the beginning, the entire patent process works more smoothly. Examiners can review the design without confusion, office actions become less likely, and applications move forward without unnecessary setbacks. Strong drawings also strengthen the long-term protection of your patent by making the scope of your design clear and defensible.
Professional drafting does more than translate a CAD model into lines on a page. It gives you confidence that your design is represented accurately, reduces the risk of costly delays, and helps ensure your patent has the strength to protect your innovation for years to come.
