When you're preparing drawings for a design patent, small details can make a big difference. One of the most important — and often misunderstood — elements is shading. It’s not just for looks. Shading helps show the shape and surface of your design in a way that solid lines alone can’t.
But not all shading is good shading. Poor technique can create confusion, weaken your application, or even result in an objection from the USPTO. Here’s how Blueshift gets it right.
In a well-crafted patent drawing, not all lines are equal. The solid lines that define the edges of your object should be darker and bolder than the finer lines used for shading. If everything is the same weight, the drawing starts to flatten — and it can be hard to tell what’s structure and what’s surface detail.
Clear contrast between line types helps examiners read the form quickly and correctly. Think of your solid lines as the skeleton, and the shading as the skin — each has a job, and they shouldn’t compete with each other.
Shading lines should come close to the object's outline, but they shouldn’t actually touch it. Leaving a small gap — even a tiny one — makes a big difference in clarity. Without that space, the shading can “melt” into the edges of the object, making the structure look blurry or imprecise.
This issue gets worse when drawings are resized for filing. A little breathing room helps ensure your drawing stays readable at every stage.
Shading lines shouldn’t be continuous from edge to edge. Introducing small breaks — especially near corners, ridges, or changes in direction — helps define the form more clearly. It keeps the drawing from looking heavy or overworked and gives a sense of where one surface ends and another begins.
Think of it like light falling across a surface: it doesn’t hit every point evenly, and your shading shouldn’t either.
Cramming in too much shading can backfire. Lines that are too close together may blur or merge when the drawing is reduced in size, which can cause the design to lose definition — or even result in an objection.
Instead, I aim for balance. I use enough shading to suggest the shape, but keep things open and readable. Clean drawings usually speak louder than dense ones.
Different shapes need different shading techniques. Here’s a quick guide:

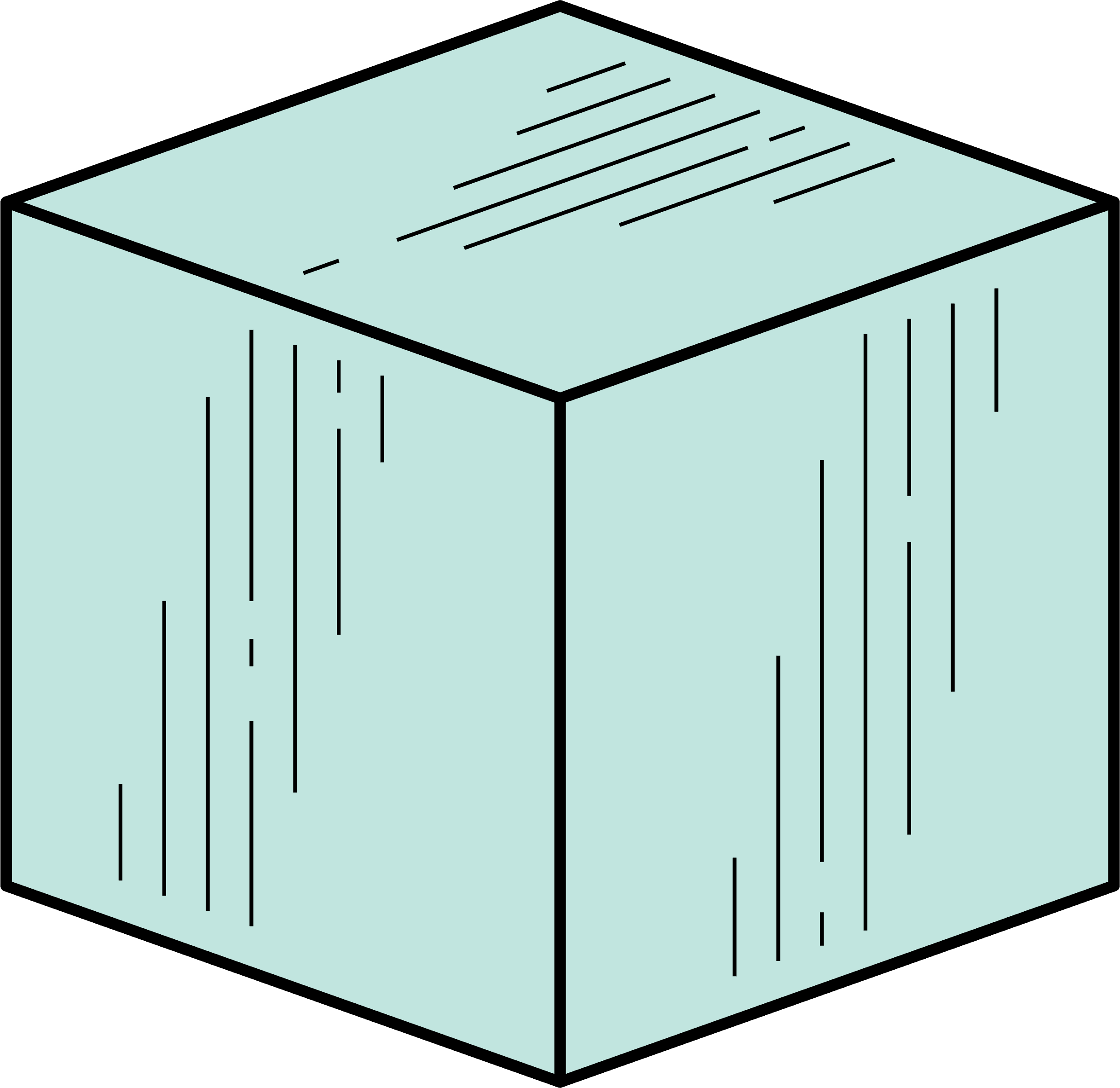

Flat surfaces: Straight, parallel lines should be used that follow the angle of nearby solid edges.
Angled surfaces: Lines should be spaced wider or tighter depending on how close the surface is to the viewer.

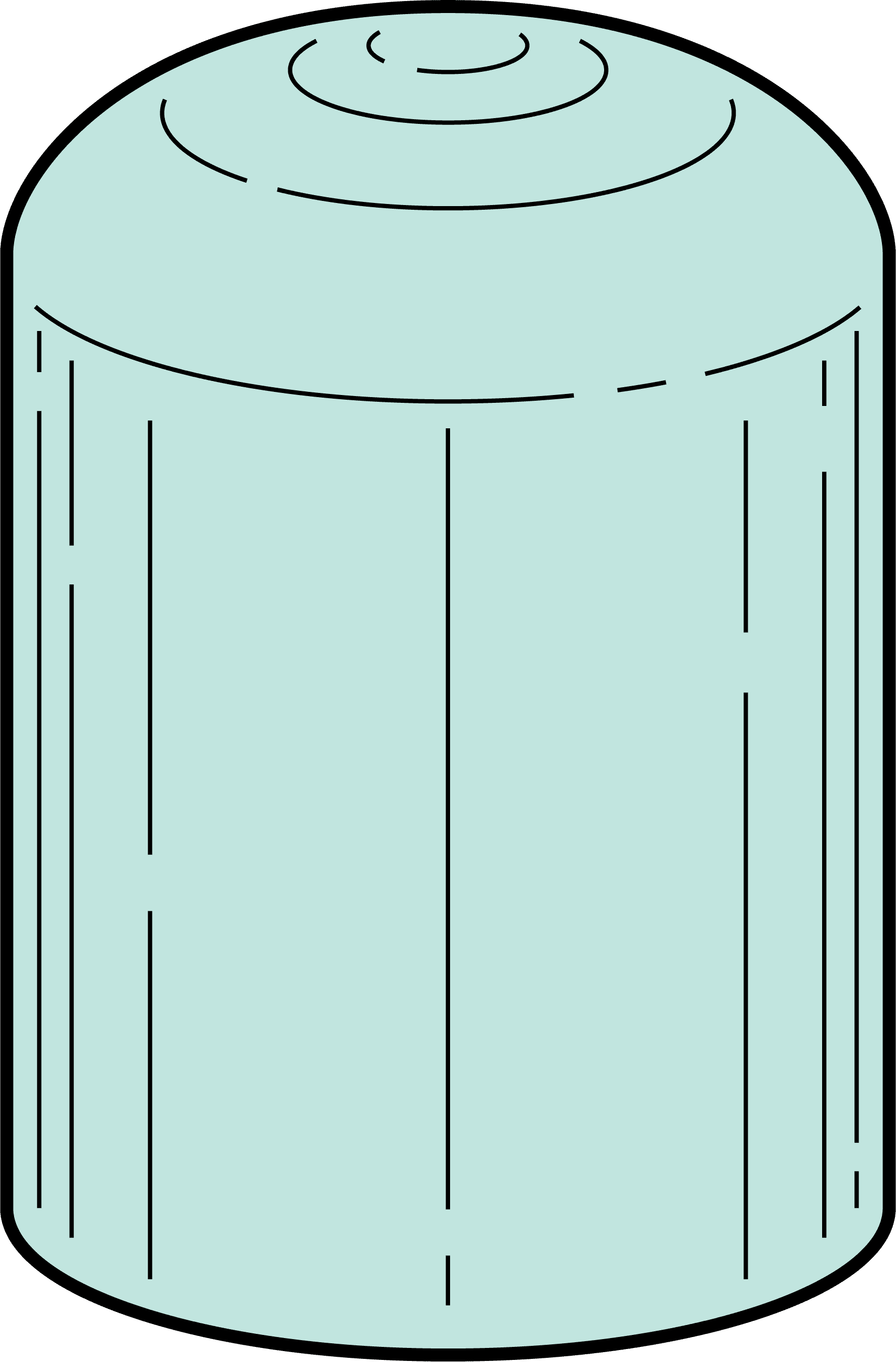

Cylindrical shapes: In cylinders, lines follow the curve of the shape tightening toward the edges to suggest depth.
Rounded forms: Soft, curved lines are used that echo the surface’s shape.
The goal is to make the surface feel real, even in a line drawing.
Lets Do It Right
You don’t need excessive detail to make a strong design patent drawing — just clear, confident shading that supports the form. These small refinements can improve readability, make a better impression on reviewers, and ultimately help your patent move forward more smoothly.
